8 1/2' Tricone Rock Bits/TCI Tricone Bits/Oil Well Bits

8 1/2 inch tricone drill bits  Product Description   size81/2\'\'IADC537WOB(KN/MM)0.45-1.0RPM(R/MIN)120-50Thread connection41/2\'\'reg pinWeight38KgMOQ1PCSSuitable formationmediu soft with low compressive stength and harder abrasive,stringers,such as hard shalehard gypsolyte,soft limestone sandstone and

Featured Products


8 1/2 inch tricone drill bits

Product Description
size81/2''
IADC537
WOB(KN/MM)0.45-1.0
RPM(R/MIN)120-50
Thread connection41/2''reg pin
Weight38Kg
MOQ1PCS
Suitable formationmediu soft with low compressive stength and harder abrasive,stringers,such as hard shalehard gypsolyte,soft limestone sandstone and dolomite with stringers,etc
Noteother sizes and IADC is avaiable


The advantage of using a tricone bit:

1. There is a tri cone suitable for any formation 2. Tricone bits are versatile and can handle changing formations
3. Tricones are reasonably priced with long life and good rate of drilling

Depending on ur application,we can provide u with new,rerun or premium oil field quality tricone bits,
the difference between a premium oil field tricone bit and nonpremium oil well quality tricone is that the roller cones have high end sealed bearings: extremely high quality tungsten carbide and offer diamond gauge protection throughout the drill bit. These roller cone bits are designed to go to extreme depths in extreme conditions and in situations where they cannot fail.

Our tci tricone bit range in size from 3" to 26"

Our mill tooth tricone bit range in size from 3" to 26"


The main structure parameter of tricone bits


Bit sizesStd API pin shank(inches)Jet nozzle size (mm)
   mmInchesDiamterLengthNozzle diameter
95.2-107.93 3/4-4 1/42 3/8REG20.317.54~10
120.64 3/42 7/8REG
142.9-171.45 5/8-6 3/43 1/2REG23.6195~16
190.5-200.07 1/2-7 7/84 1/2REG29.8197~18
212.7-222.28 3/8-8 3/44 1/2REG33278~20
241.3-311.19 1/2-12 1/46 5/8REG
444.5-660.417 1/2-267 5/8REG33(41)278~20


Suitable formations:

Rock formationBit typeBit sizeDrilling weightRotary speed
mminchN/mmr/mm
Very softSoft marl, clays, sands, salts etc.1187.3-346.17 3/8-13 5/8441-735120-50
444.5-660.417 1/2-26196-68690-60
SoftClays, soft shale, marl, sands, salts etc.295.2-174.63 3/4-6 7/8245-490100-50
187.3-346.17 3/8 13 5/8490-78490-40
444.5-660.417 1/2-26196-68660-40
Medium softShale, marl sandstone, soft limestone etc.395.2-174.63 3/4-6 7/8245-49090-50
187.3-311.17 3/8-12 1/4490-78480-40
444.5-660.417 1/2-26196-68660-40
mediumHard shale , limestone, medium/hard sandstone etc495.2-174.63 3/4-6 7/8294-53980-60
187.3-241.17 3/8-9 1/2539-83360-40


Product photos

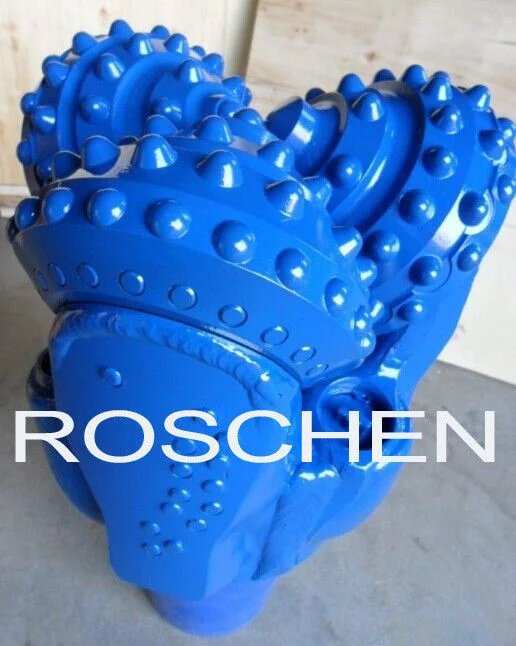

8 1/2'' Tricone Rock Drill Bit/TCI Tricone Bit/Oil Well Drill Bit
